Load Bars Version 1

A and A Scales LLC
Toll free 800-481-4114
Outside the U.S. 973-800-3965

We will not be undersold!
Open 7 days a week

	Includes one pair of Load Bars and a digital weight indicator
	15 ft of Indicator cable, 8 ft of cable between load bars
	Factory Pre-Calibrated
	No sales tax outside New Jersey
	Computer / Printer output standard
	Portable, Shipping weight is 80 lbs (shippable by UPS)
	Choice of two different weight indicators
	Optional Hog & Sheep crate

Optional Hog & Sheep Crate Kit

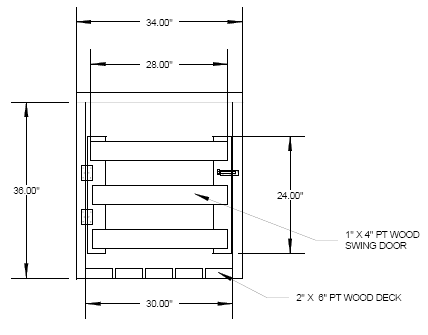

Hog & Sheep crate with two gates & 30" long load bars
48" long x 30" wide
Crate kit includes pre-drilled wooden planks and all necessary hardware

Photo of wooden deck with 30" load bars
Includes pre-drilled wooden planks and all necessary hardware

Side View

Front View

SBI 140
Stainless Steel enclosure (not waterproof)
Runs on batteries (AA batteries) & Electricity

TI-500SL
Stainless Steel waterproof enclosure
Runs on batteries (rechargeable) & electricity

Our animal scales are heavy duty electronic weigh scales, available in 2500, 5000, or 10000 lb. capacities. They mount easily under any cattle squeeze, hog crate, feed hopper, or custom platform. The scale system is capable of 1/10 percent accuracy, and has a proven track record with over 20 years of field use in operating temperatures of -40 to +40 degrees Celcius.

Loadbars are enviromentally coated for outdoor installation. There are no moving parts to wear out, and no costly maintenance. A safe overload range of 150% of capacity.
The indicator features large easy to read digital readout in either pounds (lbs) or kilograms (kgs). It operates on 120v AC power or an optional Battery operated model. The exclusive lock-on feature averages the animal's weight, thus eliminating the problem of animal movement during the weighing process.
The units are calibrated and balanced at the factory, eliminating the need for an installation technician. Install the scale, press the Zero button, and you're ready to weigh. This also allows you to compensate for manure, mud, or snow build-up on the scale surface.

Each weight indicator has the following front panel keys: lb/kg, TARE, ZERO, PRINT, NET/GROSS.

Dimensions Capacity SBI-140
TI-500SL

26" long x 5" high 2,000 lb x 0.2 lb or 2,500 lb x 0.5 $1,095 $1,195

36" long x 5" high 5,000 lb x 1 lb or 5,000 lb x 0.5 $1,095 $1,195

48" long x 5" high 2,000 lb x 0.2 lb or 2,500 lb x 0.5 $1,195 $1,225

48" long x 5" high 5,000 lb x 1 lb or 5,000 lb x 0.5 $1,195 $1,225

48" long x 5" high
10,000 lb x 2 lb or 10,000 lb x 1
$1,195 $1,225

60" long x 5" high
5,000 lb x 1 lb or 5,000 lb x 0.5
$1,275 $1,365

60" long x 5" high
10,000 lb x 2 lb or 10,000 lb x 1
$1,275 $1,365

60" long x 5" high 15,000 lb x 5 lb $1,475 $1,525

Hog & Sheep crate with 30" load bars 48" long x 30" wide crate
with 5000 lb x 1 lb load bars $1395 $1550

Wooden deck with
30" load bars 48" long x 30" wide - no crate, just wooden deck with bars $1095 $1295

Optional Hog & Sheep crate kit comes complete with pre-drilled holes and hardware

*Custom sizes are no problem

Click here to order on-line
