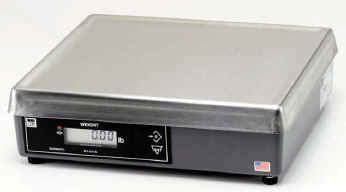

NCI 6720 with built-in display NCI 6720 with built-in display

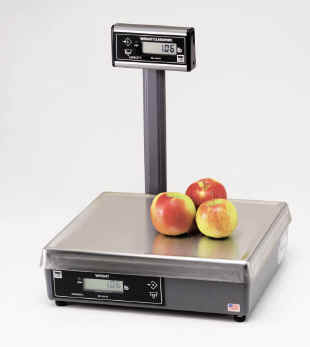

shown with optional remote display and post



Specifications
Capacity and Resolution:
Pounds Kilograms
15 x 0.005 7 x 0.002
30 x 0.01 15 x 0.005
60 x 0.02 30 x 0.01

Dimensions:
Weigh Platter – 12" x 14" (305 mm x 356 mm)

Adjustable Height:
4.1" – 4.6" (104 mm – 117 mm)

Power:
120 VAC (+10% -15%)/ 60 Hz (±3 Hz)
Standard 3 wire with ground
Output – 15 VDC @ 0.3 Amps minimum

Operating Environment:
41°F to 104°F (5°C to 40°C) (Class III device)
10% to 90% RH (non-condensing)

Agency Approvals:
United States NTEP, Class III, COC #95-070A5
Canada MOI approval #AM-5076 Rev. 2
UL Listed, CSA, CE Certified Power Supply

NCI 6720 with built in display

Part Number Capacity Platform Price
NCI 6720-15
(9504-16647)
15 lb x 0.005 lb 12" x 14" $522
NCI 6720-30
(9504-16474)
30 lb x 0.01 lb 12" x 14" $522
NCI 6720-60
(9504-16664)
60 lb x 0.02 12" x 14" $522
Options
RS232 interface cable Part # 1140-13842   $20
2nd display with 7 ft cable Part # 7300-14808-14   $150
12" post for 2nd display Part # 7200-14837   $60

NCI 6720 with remote display
(no built-in display)

Part Number Capacity Platform Price
NCI 6720R-15
15 lb x 0.005 lb 12" x 14" $550
NCI 6720R-30
30 lb x 0.01 lb 12" x 14" $550
NCI 6720R-60
60 lb x 0.02 12" x 14" $560
Options
12" post Part # 7200-14837   $60
RS232 interface cable Part # 1140-13842   $20
